ARiC Insulation manufactures a complete range of transformer insulation components from our facility in Maharashtra, India — trusted by transformer manufacturers, rewinders, and OEMs since 1969. From pressboard coil supports and dog bone supports to densified wood components, epoxy nuts, and angle rings — every component is manufactured in-house to IS and IEC standards, with custom fabrication available for any transformer design.
Transformer insulation components are the structural and dielectric elements that hold a transformer's winding assembly in place, maintain electrical clearances between phases, and protect the winding from mechanical stress during operation and short-circuit events.
ARiC Insulation manufactures every component required for a transformer's internal insulation system — from the pressboard that forms the winding former and coil supports, to the densified wood distance pieces, dog bone supports, epoxy fasteners, and angle rings that complete the assembly. All components are available individually or as a complete transformer insulation kit.
Click any component below for full specifications, material grades, and individual product enquiry.

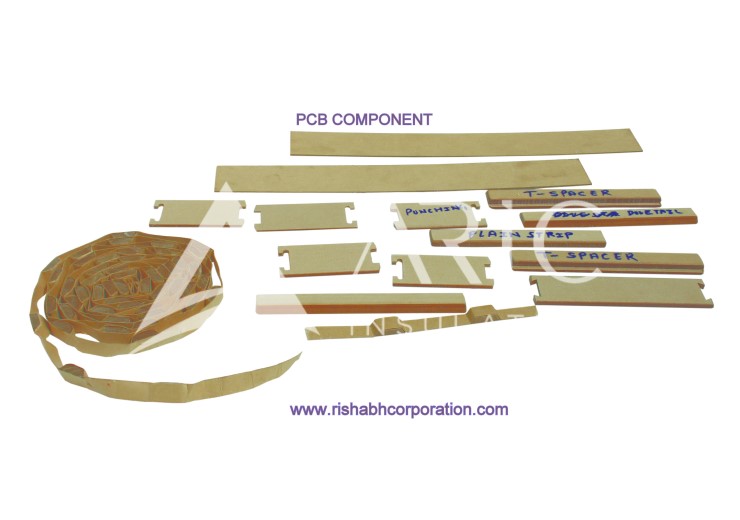

Calendered and pre-compressed pressboard for transformer coil supports, end rings, and corner angles. IS 1576 compliant.
View Details

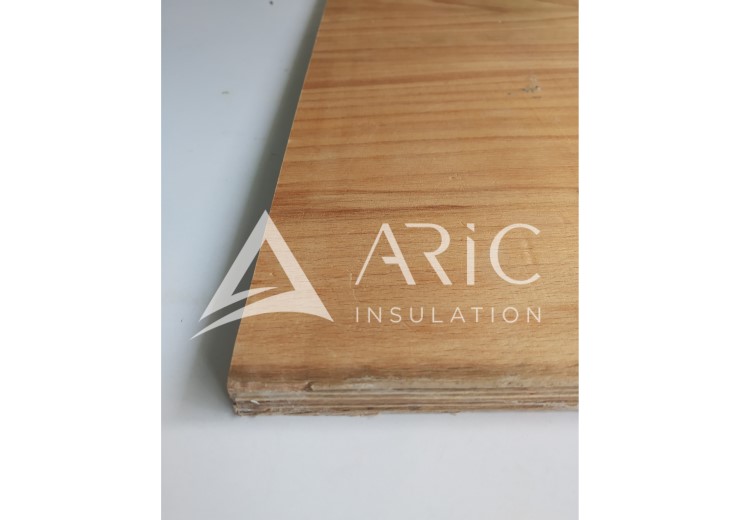

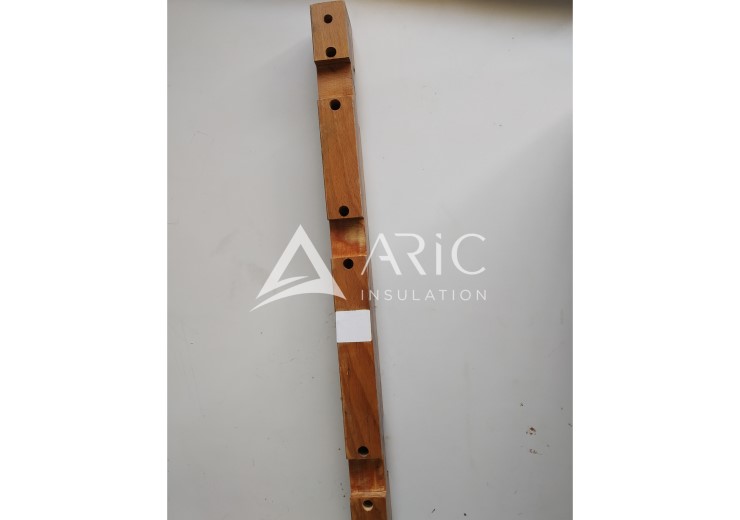

High-strength densified wood sheets and CNC machined components for transformer and panel applications. IS 1891 compliant.
View Details

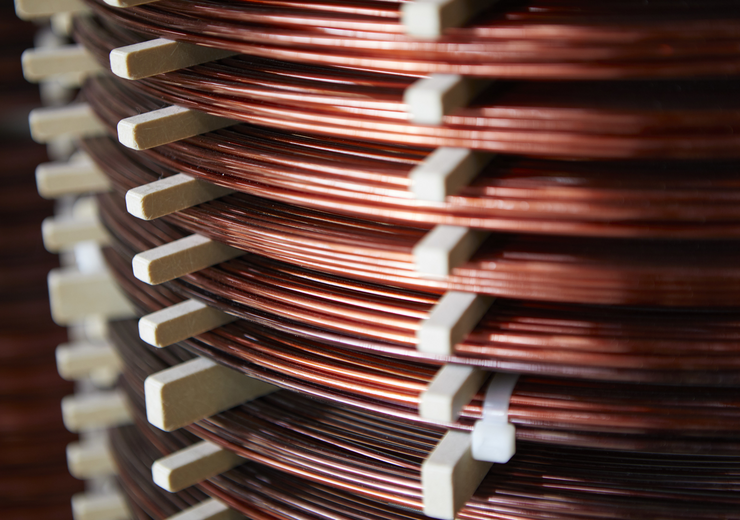

Pressboard and densified wood coil supports for oil-type and dry-type transformer winding assemblies. Custom dimensions available.
View Details

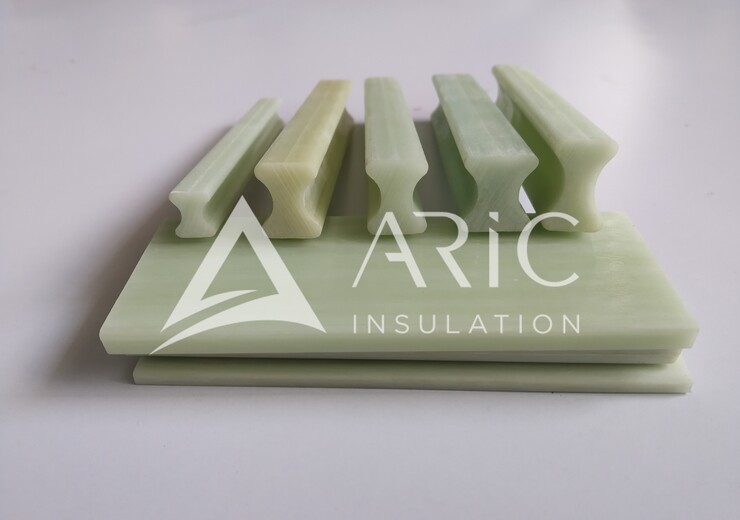

Precision-machined dog bone and dumb bell supports for transformer winding spacers and coil separation. CNC machined to drawing.
View Details

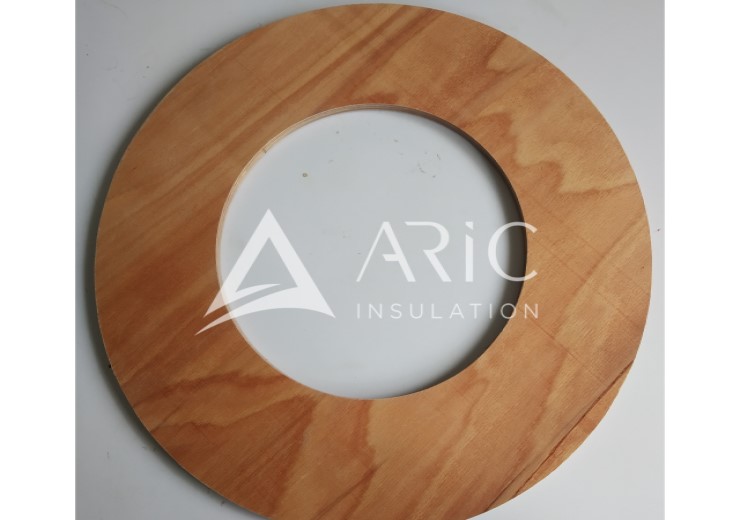

Pressboard angle rings and end rings for transformer winding end insulation. Manufactured to your transformer design dimensions.
View Details

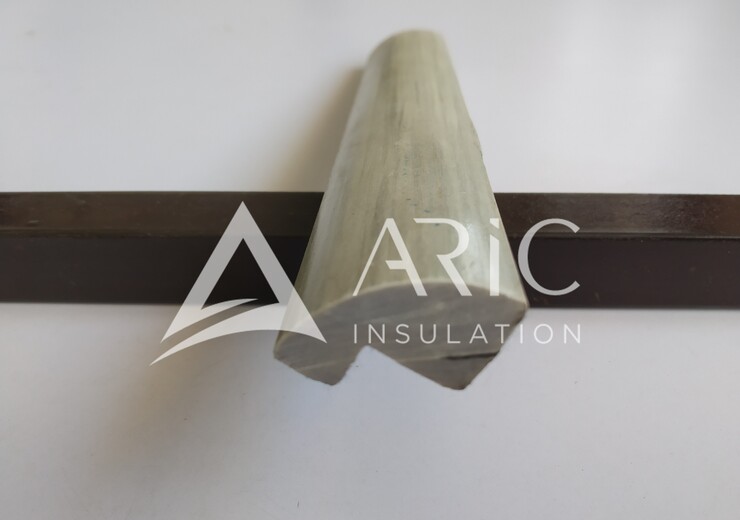

Pressboard corner angles for transformer core and coil assembly. Provides mechanical protection and electrical insulation at winding corners.
View Details

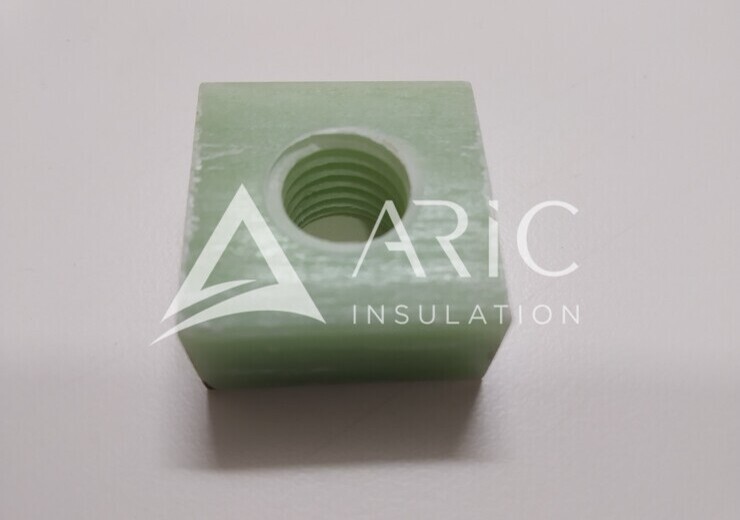

High dielectric strength epoxy glass laminate nuts and bolts for transformer and switchgear assemblies. IEC 60893 compliant.
View Details

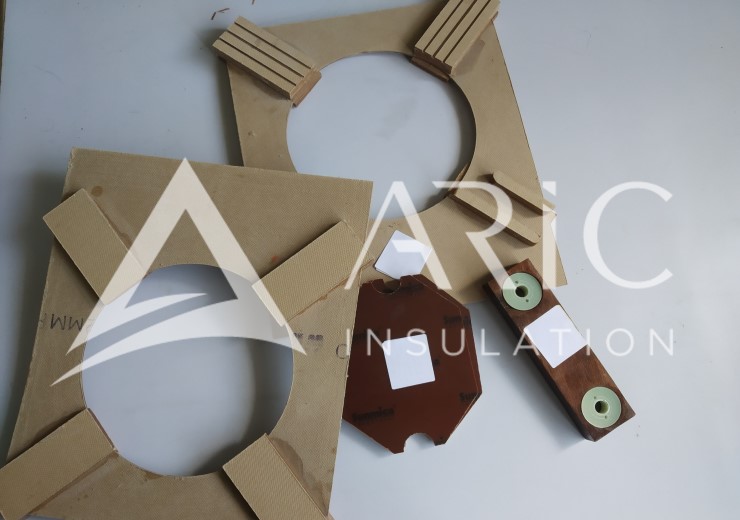

Complete matched set of all insulation components for your transformer design — pressboard, densified wood, epoxy components, and more in one order.
View DetailsARiC Insulation manufactures transformer insulation components across three primary material families — each suited to different mechanical and electrical requirements within the transformer assembly:
| Material | Standard | Primary Use |
|---|---|---|

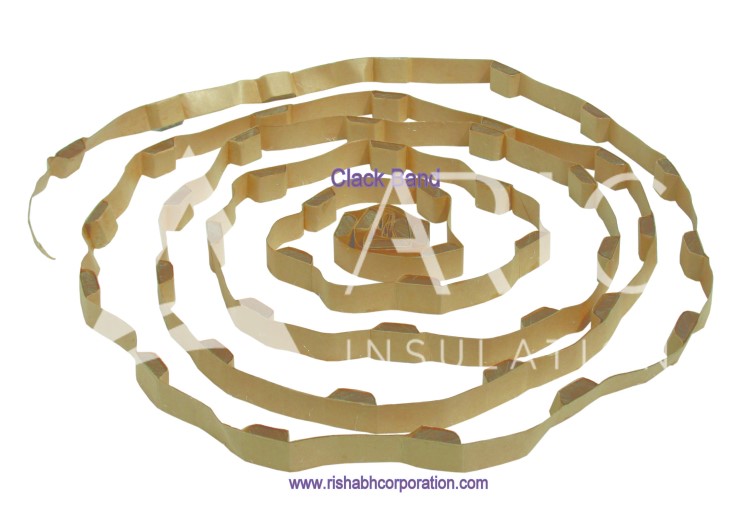

| Pressboard | IS 1576 | Coil supports, end rings, corner angles, clackbands, phase barriers — primary structural insulation in oil-type transformers |

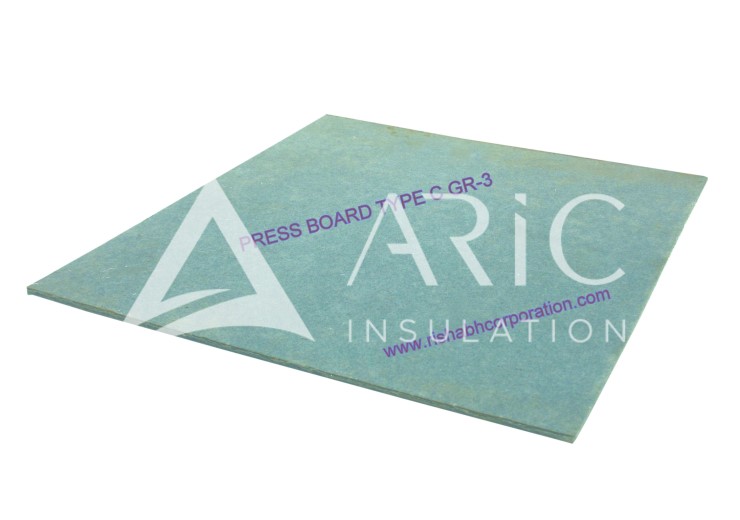

| Pre-compressed pressboard | IS 1576 | Critical support applications where dimensional stability under load is essential — does not compress further during service |
| Densified wood (Permali) | IS 1891 | High mechanical strength applications — distance pieces, coil formers, support blocks in oil-type transformers |
| Epoxy glass laminates | IEC 60893 | Epoxy nuts, bolts, and machined components where high dielectric strength combined with mechanical precision is required |
| Diamond dotted paper | — | Inter-winding layer insulation — bonds under heat during drying to improve winding rigidity |
We manufacture pressboard components (coil supports, corner angles, end rings, clackbands), densified wood components, dog bone / dumb bell supports, epoxy nuts and bolts, angle rings, and diamond dotted paper. All components are available individually or as a complete transformer insulation kit.
Standard pressboard will compress slightly when placed under mechanical load during transformer assembly. Pre-compressed pressboard has already been compressed to its final density during manufacture — it maintains its dimensions under load throughout the transformer's service life, making it the preferred choice for critical support applications.
Yes. All components are manufactured to your transformer drawing or specification. Share your drawing and our team will advise on material selection, tolerance requirements, and lead time.
Yes. Pressboard components conform to IS 1576, densified wood to IS 1891, and epoxy glass laminate components to IEC 60893. Compliance documentation is available on request.
Yes. Our transformer insulation kit includes every component required for your transformer design, manufactured to your drawing and supplied as a single matched set — eliminating the need to source components from multiple suppliers.
Share your component list or transformer drawing — we respond within 24 hours.
