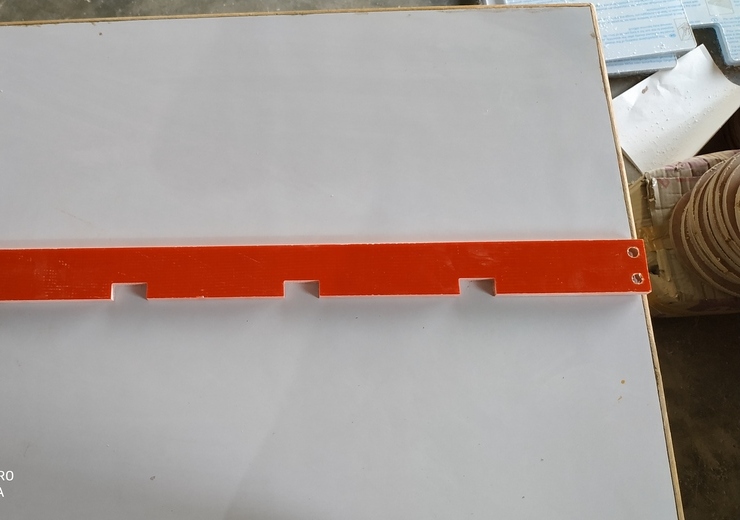

Insulating busbar supports enable the fixing of copper or aluminium busbars and are tested to safely hold them during a short circuit.
| Property | Value |
|---|---|
| Material Type | Fiber Reinforced Plastic |
| Thickness Range | 2mm – 50mm |
| Colour | White, Orange or Custom |
| Specific Gravity (Density) | 1.9 to 2.1 |
| Glass Content | 25% |
| Dielectric Strength | 5 Kv/mm |
| Tensile Strength | 130 N/mm2 |
| Compressive Strength | 220 N/mm2 |
| Shear Strength | N/A |
| Operating Temperature | Up to 110°C |
| Customization | Available as per drawings |
Contact us today
